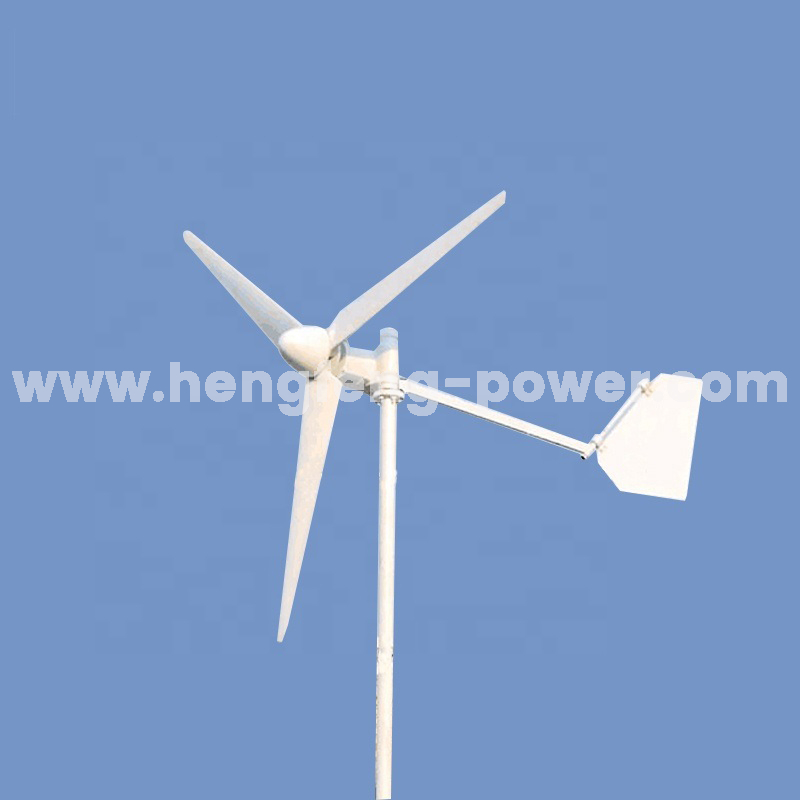

Horizontal axis 600w wind turbine
Horizontal axis 600w wind turbine

The advantage of our production:

● Low speed permanent magnet generator.
● Low starting torque, High generating efficiency.
● Glassfibre high efficiency blades.
● Neodymium magnets and bearing with high performance.
● Pre-yaw design for tail vane.
● Designed for minimal maintenance and easy install.
● Resistance brake & manual brake.

E-mail >

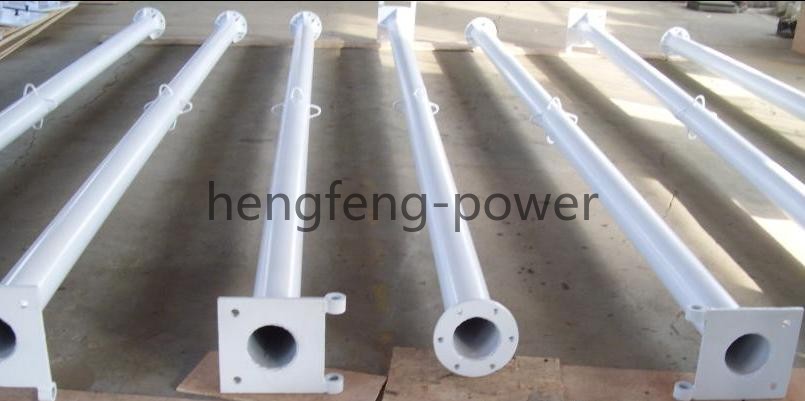

Free stand tower

Height of pole: 6 m

 Thickness: 5 mm

The top caliber: 75(mm)

The below caliber: 175(mm)

Material: Q235 Steel plate

Surface treatment: Galvanizing, spray


Generator

Blades diameter: 2.8(M)

 Rated rotor speed: 400(r/m)

Rated speed: 8(m/s)

Rated power: 600W

Max power: 1000W

Output voltage: 24V

Start up wind speed: 3(m/s)

Work speed: 3-25(m/s)

Security wind speed:40(m/s)

Generator shell material: Pressure cast iron

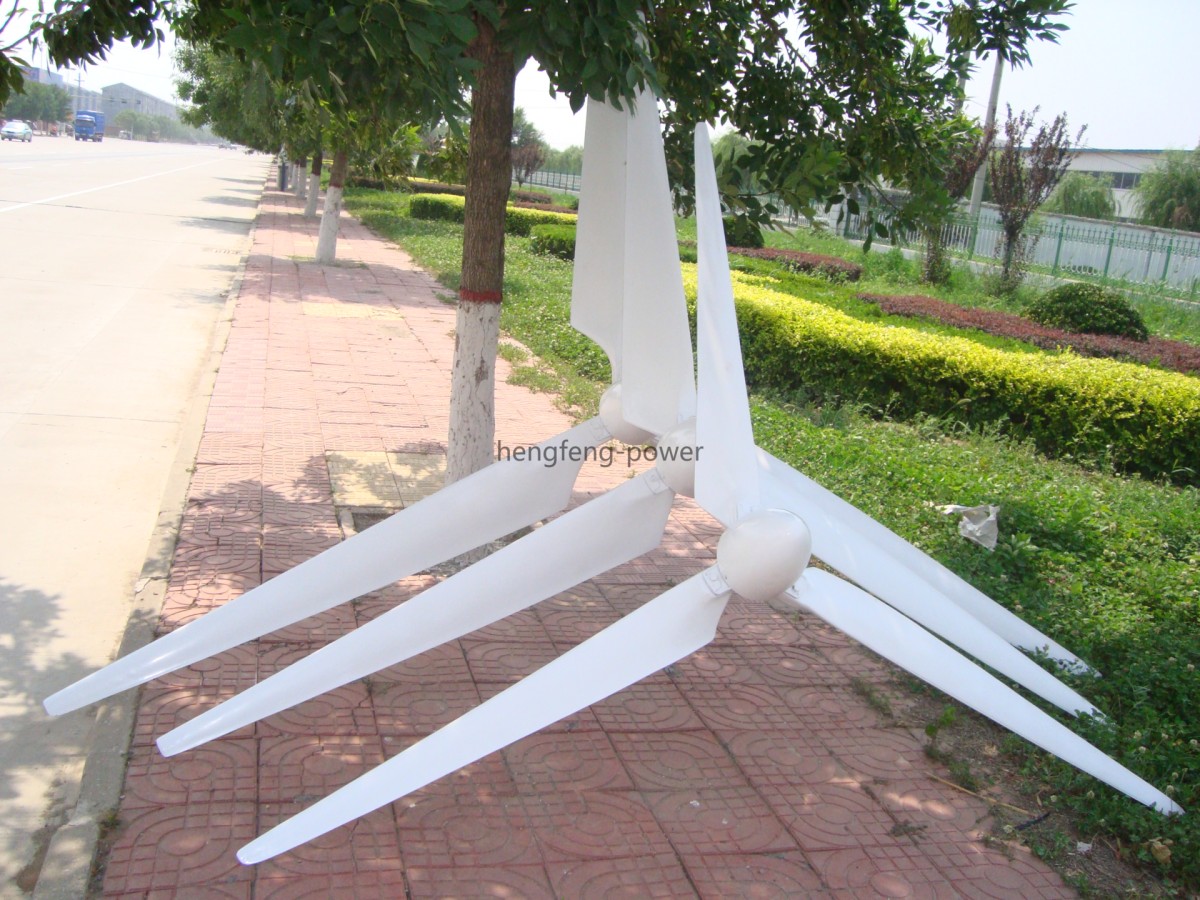

Blades

Material of blades: FRP Lay-up by hand

 Number of blades: 3PCS

Diameter of blades: 2.8M


Dome

Material of dome: FRP Lay-up by hand

 Number of dome: 1PCS

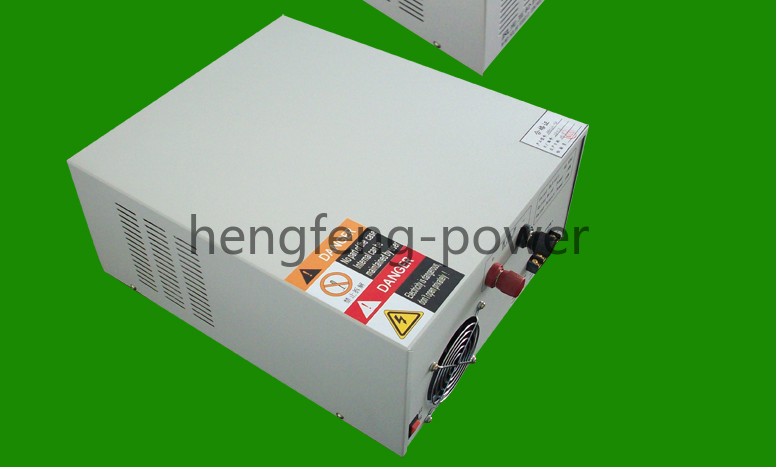

Wind & solar hybrid controller

Rated output power of windturbine: 600W

 Solar panel power: 150W

Ratedoutput power: 600W

output voltage: 220±8%

Matched battery: 24V

Output frequency: 50±2HZ

Working method: Continuous

Function: Charge and inverter

Application environment: Temperature: -10~40℃; Humidity: ≤80%

Over-load Capability: 150% 1minute

Protection of over-load: 200% immediate protection

Voltage of resuming power-supply: 26±1 (DC,V)

Stop chargeDC voltage: 30±1(V)

Voltageof resuming charge: 24±1 (DC,V)

Short-voltage protection: 20±1(V)

Stop working voltage: ≤18(V)

Fuse current: 30(A)




Tail Vane Board& Tail Vane Booms

Material: Q235 Steel plate

 Surface treatment: painting against decaying


Cables

Dim (copper): Φ2.5mm 11m

Material: copper & PVC

AccessoriesBase, Anchors of Base,nut & washer & bolt suitable for installation
PackingPLYWOOD CASE
